The brake assembly uses a split-brake cylinder with a single inlet port. Wear indicator pins provide a visual or tactile indication of usable lining remaining. The disc, which is a wear component, is not part of the rotor brake assembly.

&nbsp;

APPLICATIONS

&nbsp;

Helicopters

&nbsp;

FEATURES AND ATTRIBUTES

&nbsp;

<ul>
	<li>Weight optimized for each application</li>
	<li>Robust design</li>
	<li>Live technical support</li>
	<li>Worldwide distributor network for commercial applications</li>


	&nbsp;
</ul>

OPTIONAL FEATURES

Designed to meet rotor brake helicopter specifications

Home

Products

Brake Assemblies

Rotor Brakes

030-21301

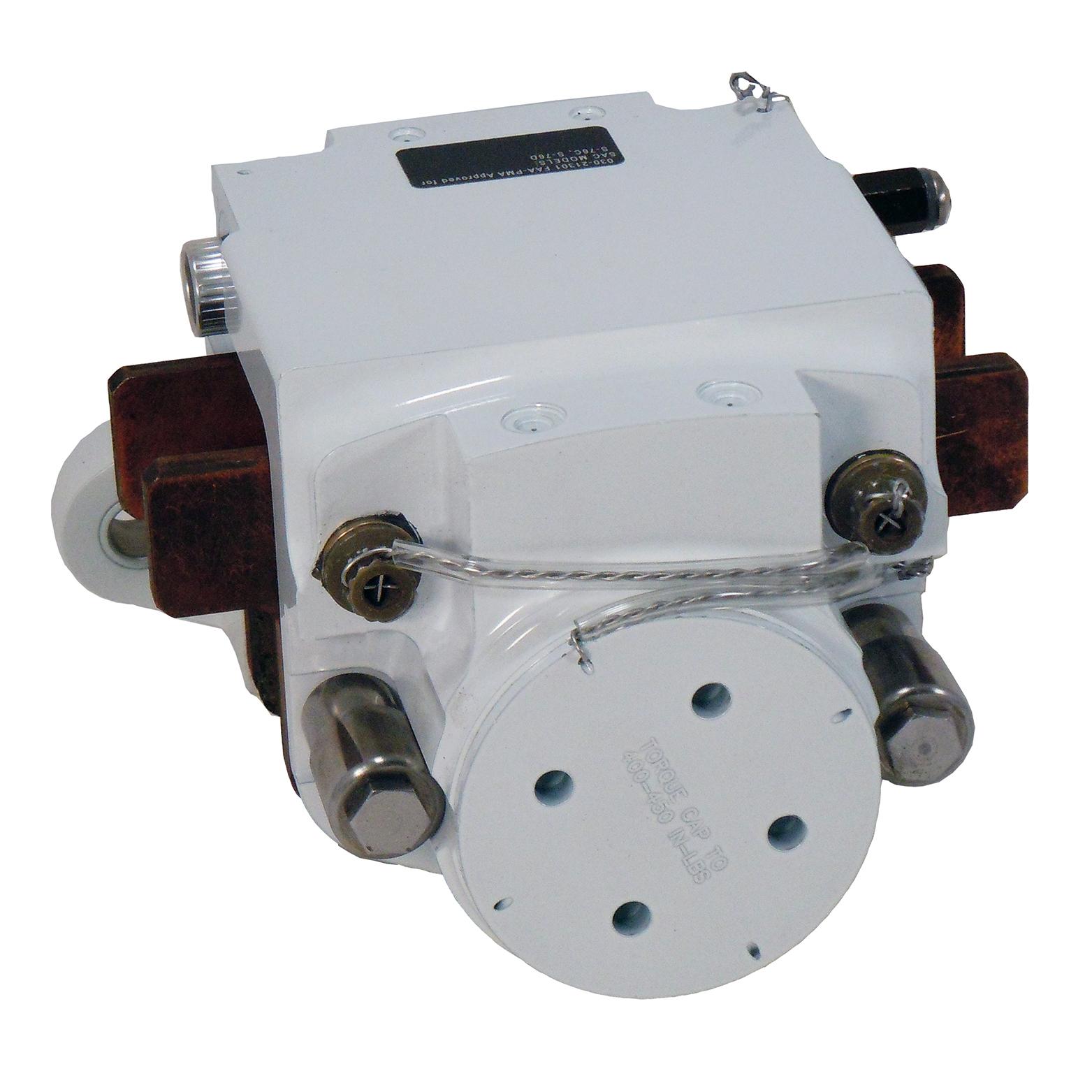

The Rotor Brake assembly is a piston actuated, hydraulically operated braking device for stopping the helicopter rotor and preventing rotation of the rotor.

Component Maintenance Manual (rev. 29)

Component Maintenance Manual

Product Reference Memo - PRM14A - Rev A - 7-1-1995 - Metallic Brake Lining Conditioning Procedure

Product Reference Memo

Technicians Service Guide (rev. 25)

Technician's Service Guide

Brake Type

Color

Fluid Type

Friction Material
