Each Multi Rotor (Tubewell Driven) brake assembly is composed of one brake cylinder, one pressure-plate assembly with replaceable wear pads, two or more rotating discs (rotors), one or more stationary discs (stators) with replaceable wear pads, one torque-tube assembly with replaceable wear pads, along with necessary nuts, washers, and bolts.

&nbsp;

APPLICATIONS

&nbsp;

Primarily larger general aviation and smaller business aircraft

&nbsp;

FEATURES AND ATTRIBUTES

&nbsp;

<ul>
	<li>Weight optimized for each application</li>
	<li>Robust design</li>
	<li>Live technical support</li>
	<li>Worldwide distributor network for commercial applications</li>




	&nbsp;
	<li>&nbsp;</li>
	<li>&nbsp;</li>
</ul>

OPTIONAL FEATURES

Designed to meet aircraft specifications and design parameters

Home

Products

Brake Assemblies

Internal Tubewell Driven

30-256

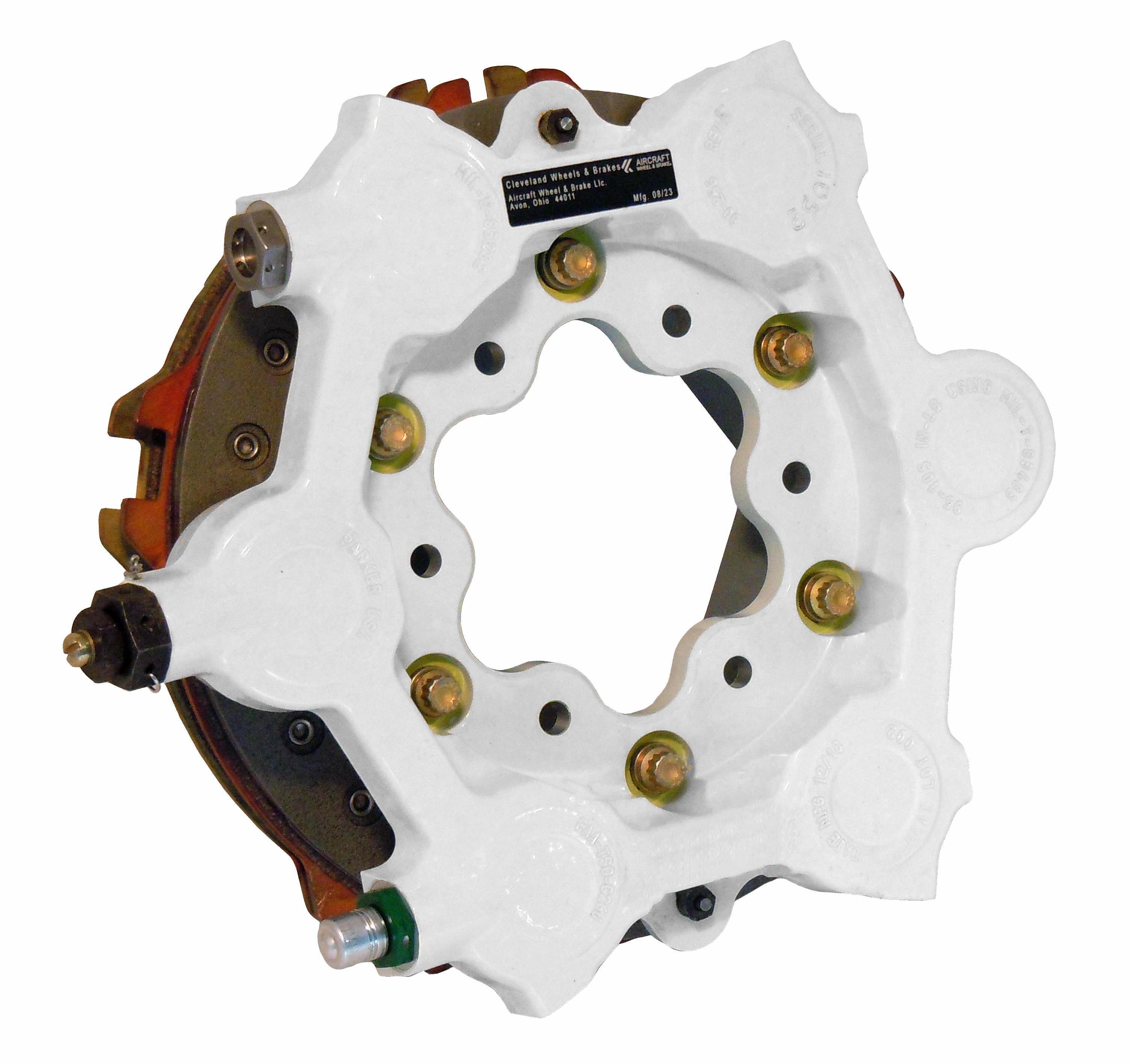

The Tubewell Driven brake is generally used in conjunction with a multi-rotor carbon or steel heat stack.  It is a piston-actuated, hydraulically operated braking device mounted to the main wheel assemblies and is used for stopping the aircraft.

Component Maintenance Manual (rev. 29)

Component Maintenance Manual

Product Reference Memo - PRM14A - Rev A - 7-1-1995 - Metallic Brake Lining Conditioning Procedure

Product Reference Memo

Technicians Service Guide (rev. 25)

Technician's Service Guide

Brake Type

Certification Type

Color

Fluid Type

Friction Material
